SD-6000 Series Classic Small Spray Dryer

Miniature experimental micro  small spray dryer and its main application in the laboratories of universities, research institutes and food pharmaceutical and chemical enterprises to produce micro particle powder, which is widely applicable to all solutions such as emulsions and suspensions, and is suitable for drying of heat sensitive substances, such as biological products, biological pesticides, enzyme preparations, etc.

The material is heated only when it is sprayed into foggy particles, so it is only instantaneously heated to keep the active ingredients of these materials intact after drying.

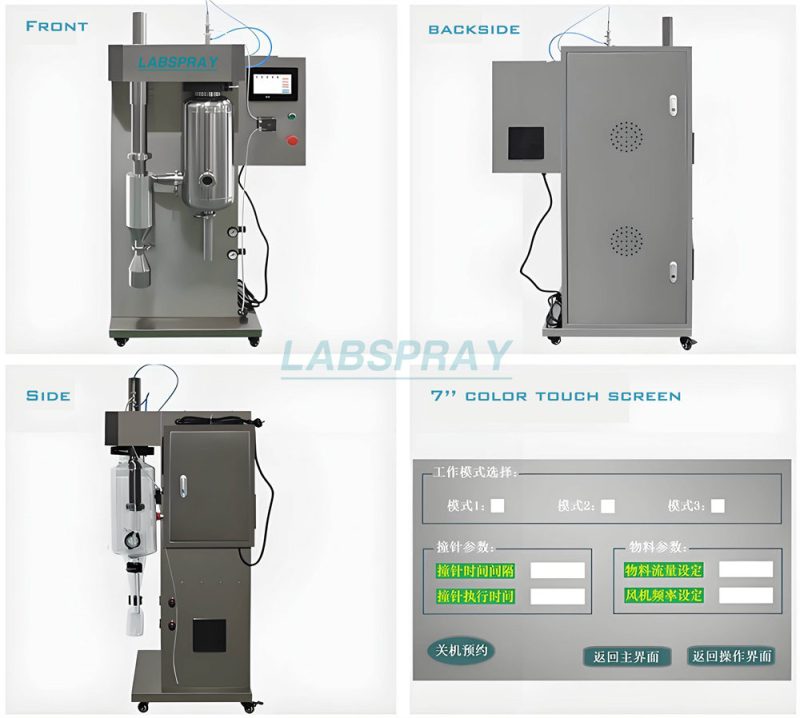

SD-6000 Series Structure

SD-6000 Series Dried Sample

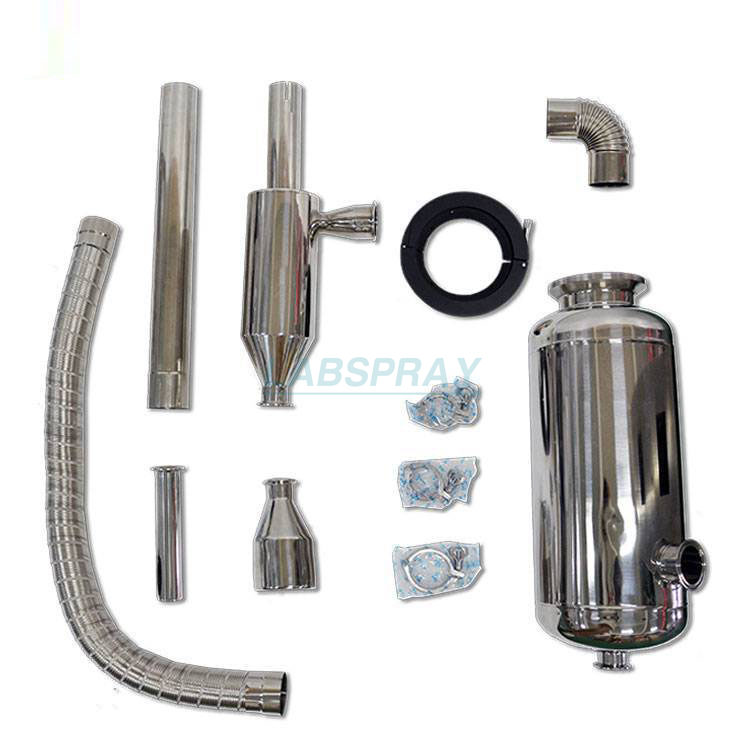

SD-6000 Series Accessories

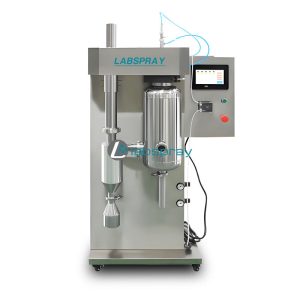

Double Cyclon Separation and collection (SD-6000S)

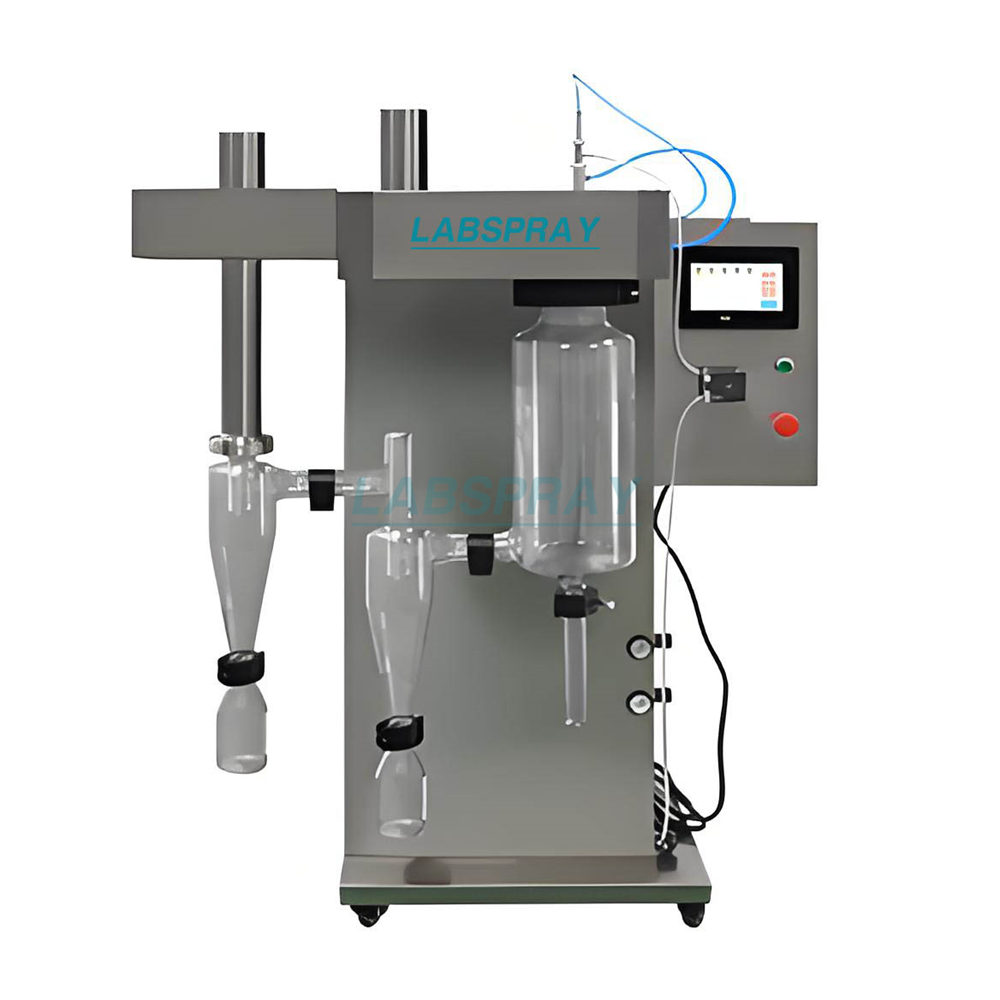

Double Cyclon Separation and collection (SD-6000G)

Main characteristice:

  1. Color LCD touch screen parameter display: air inlet temperature / air outlet temperature / peristaltic pump speed / air volume / pass needle frequency.
  2. Fully automatic control: One-click start-up, after setting spraying process parameters, the temperature reaches a predetermined temperature, the peristaltic pump starts automatically, the running animation is displayed on the touch screen, and the running process is clearly displayed; when the machine is shut down, just press the stop button, and the machine will automatically shut down safely.
  3. Manual control: If the process parameters need to be adjusted during the experiment, it can be easily switched to the manual state. The color touch screen is dynamically displayed (animated) throughout the experiment
  4. Equipped with nozzle cleaner (through needle), when the nozzle is blocked, it will be automatically cleared, and the frequency of through needle can be adjusted automatically.
  5. Shutdown protection function: Just press the stop button when shutting down, the machine will stop running immediately except the fan, to ensure that the equipment will not burn out due to misoperation (forced shutdown of the fan).
  6. The spraying, drying and collecting system is made of transparent high-quality high-borosilicate heat-resistant glass material, so that the drying process is performed in a pollution-free environment.
  7. Built-in imported oil-free air compressor, the particle diameter of the powder spray is normally distributed, the fluidity is very good, and the noise is very low, less than 60db.
  8. Atomizing structure of the two-fluid spray, the whole machine is made of high-quality stainless steel, and the design is compact without the need for auxiliary equipment.
  9. Design of drying temperature control uses real-time control PID constant temperature control technology to make the temperature control in the whole temperature area accurate, and the heating temperature control accuracy is ± 1 ℃.
  10. In order to maintain the purity of the sample, an air inlet filter is equipped.
  11. Feed volume can be adjusted by the feed peristaltic pump, and the minimum sample volume can reach 50ml.
  12. Particle size of the finished dry powder is relatively uniform, and more than 95% of the dry powder is in the same particle size range.
  13. For viscous materials, a nozzle cleaner (through needle) is provided. When the nozzle is blocked, it will be automatically cleared and the frequency of the through needle can be adjusted automatically.
  14. Innovative tower wall purging device, higher material recovery rate.

Technical parameters of small spray dryer:

Model

SD-6000G(Upgrade of SD-15)

SD-6000S(Upgrade of SD-15)

SD-6000N with bag filter

Chamber material

High borosilicate glass

Stainless steel

 High borosilicate glass


Water evaporation

1500ml

1500ml

1500ml

Minimum feed quantity

80ml

80ml

80ml

Drying chamber diameter (mm)

¢300

¢300

¢300

Maximum intake temperature

~250 C (adjustable)

~250 C (adjustable)

~250 C (adjustable)

Hot air condition

Air supply

Air supply

Suction

Heater capacity

3kw

3kw

3kw

Blower [power (kw), air volume (m /min)]

[0.25,9.5]

[0.25,9.5]

[0.25,9.5]

Compressor [power (kw), air volume (L /min)]

[0.58,108]

[0.58,108]

[0.58,108]

Electric power (kw)

4kw

4kw

4kw

Outline size (mm)
(l×w×h)

800×600×1300

800×600×1300

900×600×1300

Bag filter

N/A

N/A

Yes

Installation weight (Reference)

90kg

90kg

100kg

Power supply

220V/50Hz

220V/50Hz

Note

1: water evaporation at inlet temperature of 250 C.
2: for more evaporation equipment, please inquire online or call our company.
