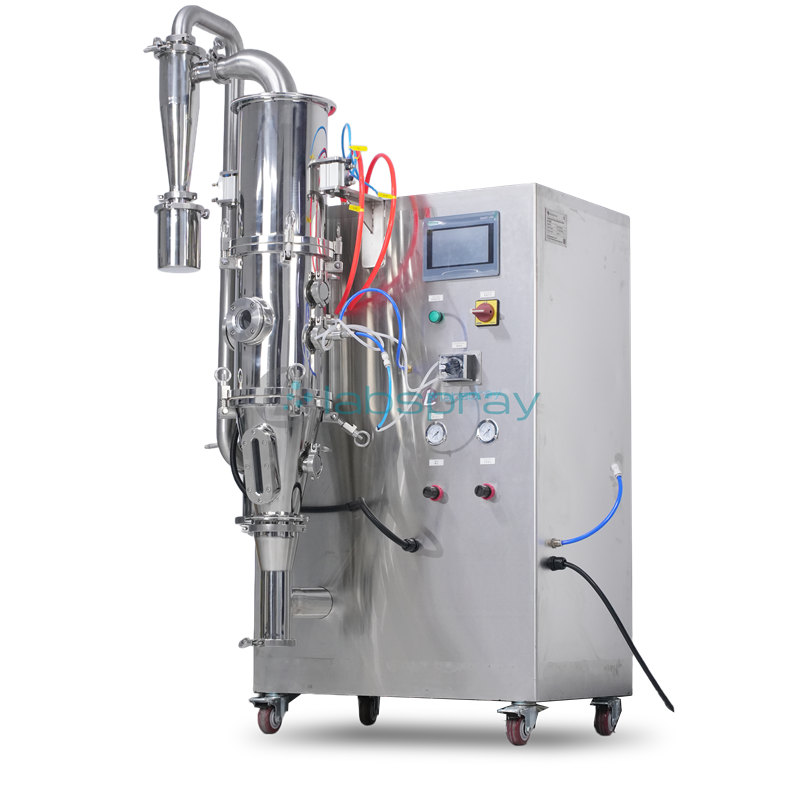

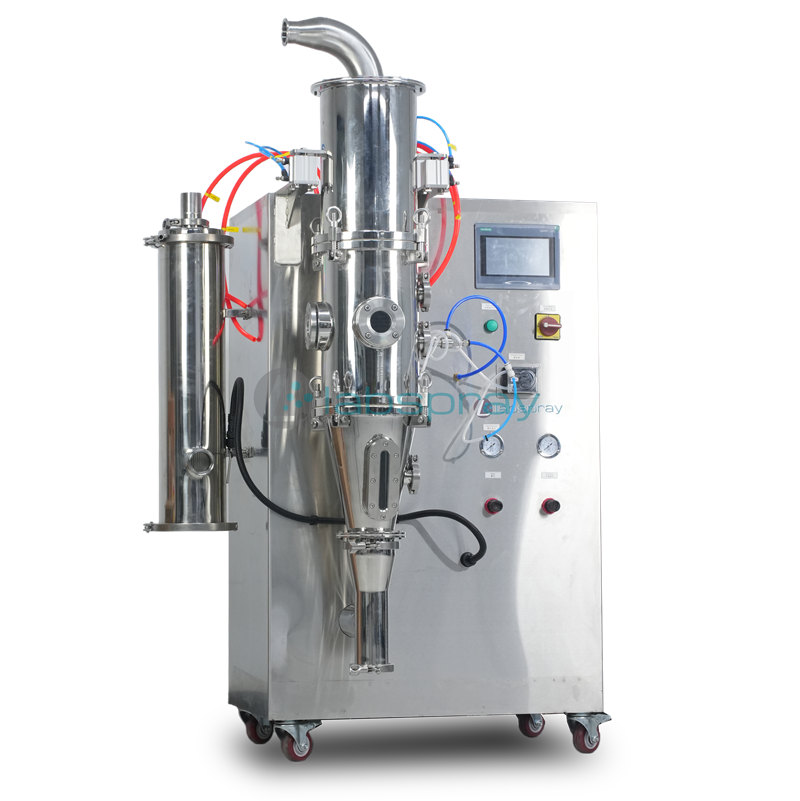

SD-1000 Coating and granulator spray dryer price
What can SD-1000 LAB SPRAY GRANULATOR do?
- Spray dryer price:1500ml/h,inlet temperature 105°C -200°C
- Spray granulator:Batch size from 50 g up to 1000 g
- Coating:Batch size from 50 g up to 1000 g
- Mixing:Batch size from 50 g up to 1000 g
- Fluidzied bed dryer:Batch size from 50 g up to 1000 g
- Designed for trials with small-scale processes especially in R&D as well as Universities
SD-1000 lab spray granulator features
- Less occupied area:1 square meters is enough to place.
- Low power consumption ,environmental protection and easy operating.
- Suitable for heat-sensitive materials and samples of easy dissolving particulates.

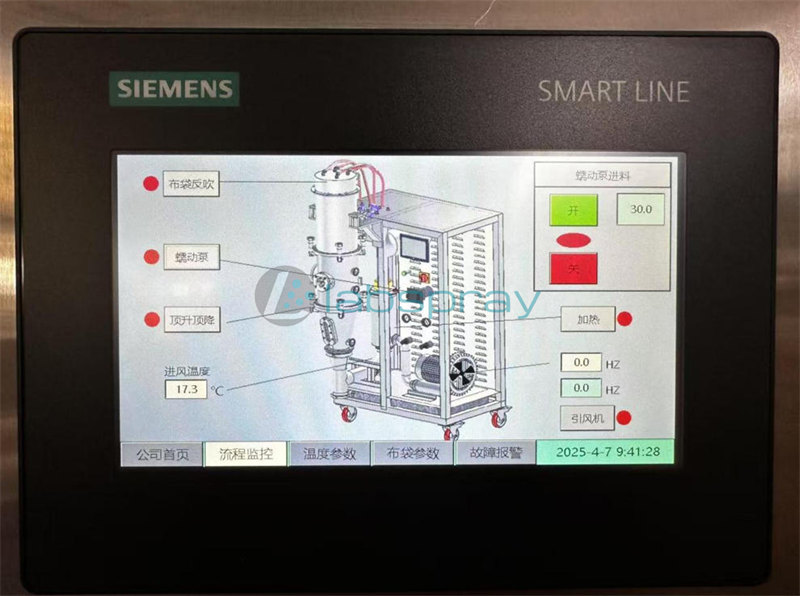

- PLC operation control. LCD touch screen displays the whole experimental process.
- Shutdown protection: press the stop button and the machine (except the fan) stops working immediately so that heating parts will not be burnt due to misuse (forced shutdown of the fan).
- Stainless steel machine body and two-fluid spray atomization structure made of SUS 316 stainless steel.
- Real-time control on PID temperature.
Application scope:
Pharmaceutical product/food and feed/ceramic product/plastic and rubber/polymer and resin/ biogenetic product/chemicals and fertilizer/ perfume/ coloring matter and dye/vegetable and fruit extract/ aromatic substance/grain crop, etc.
Application area:
Spray dehydration and micronization, microencapsulation, restoration of product composition and extraction, suspending liquid dehydration, particle size control and structure revision
Parameter |
SD-1000 spray granulator |
Function |
Spray dryer price,spray granulator,coating,mixing |
Power |
5KW ,220V,50/60Hz |
Spray granulator capacity |
Max. 1000g/batch |
Spray dryer price capacity |
Max. 1500ml/h |
Minimum sample volume |
50g |
granulator temperature |
40-150°c |
Spray dryer inlet temp. |
105-200°c |
Compressed air |
2-4 Bar |
Temperature precision |
±1°c |
Coating |
50-1000g/batch |
Mixing |
50-1000g/batch |
Nozzle type |
Two fluid nozzle |
Nozzle jet |
0.7mm standard/(0.5/0.75/1.0/1.5/2.0mm available) |
Dried powder diameter | 500um to 2mm |
Airflow |
0-150m3/h |
Peristaltic pump |
Max. 1500ml/h |
Main chamber volume |
10L |
Heater power |
3.5KW |
Main chamber material |
SUS304 Stainless steel &High borosilicate glass |
Body material |
SUS304 Stainless steel |
Seal of cyclone/cylinder |
Silicone |
Sound |
<60db |
Dimensions |
905*805*1305mm |
Weight |
115KG |
Operation mode |
Automatic/Manual |
Display |
7’’ LCD for Heat, Spray, Pump, Air pressure, de-blocker frequency |
