MEDIAPREP30 Automated Culture Medium Preparator 30L

Media Preparator is the core of all kinds of biological culture in laboratories. Many follow-up work depends on the quality of the medium.


Medium Preparator

Labgeni MEDIAPREP30 Culture Media preparator, 30L capacity

Product Description:

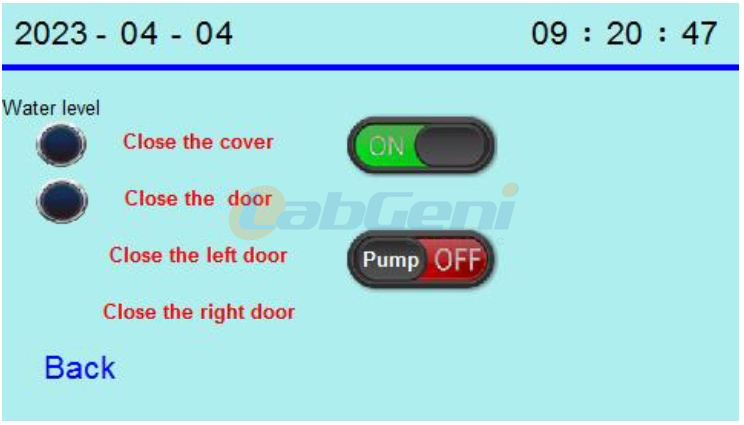

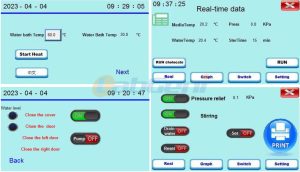

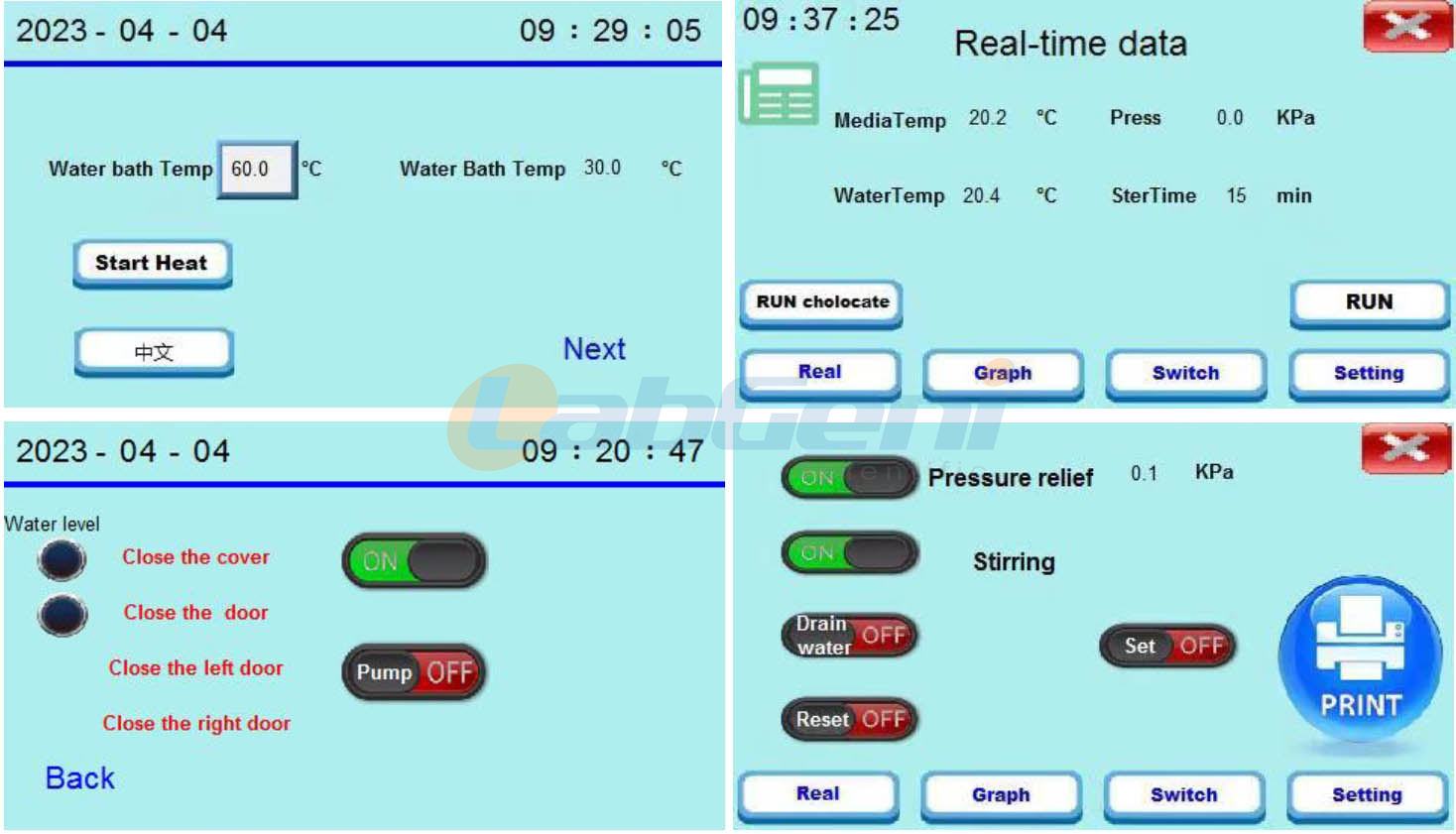

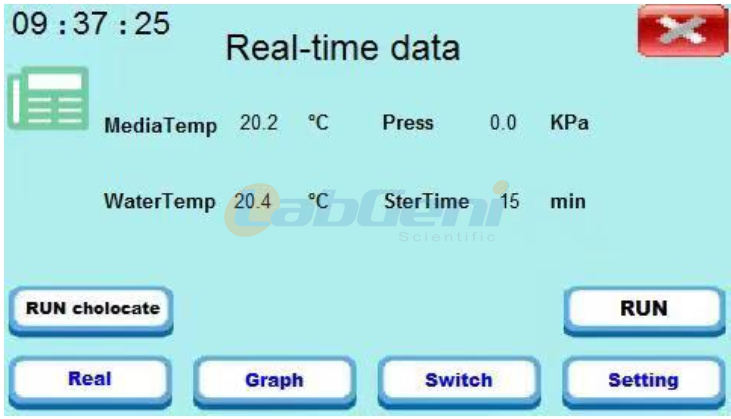

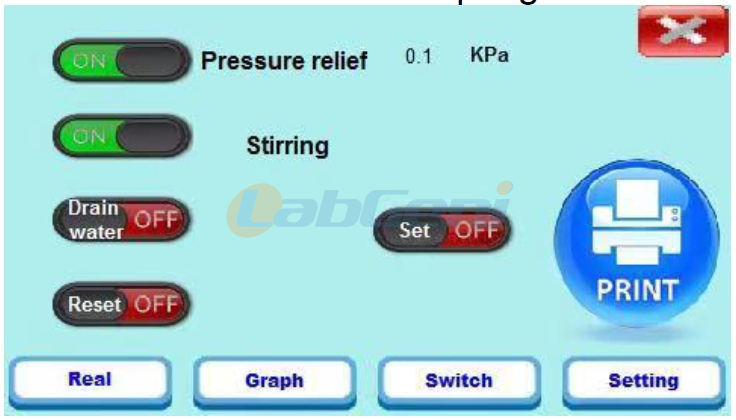

High-quality media is the core of all kinds of biological culture in today’s laboratories. Many follow-up work depends directly on the quality of the medium. An efficient preparation process is also important, which not only reduces laboratory labor costs, but also frees researchers from tedious and repetitive tasks. The MEDIAPREP30 preparator Automated Media Reader is flexible – ready to allow you to quickly sterilize and prepare high quality media. This minimizes the space required to store the finished petri dish, eliminates the management of the petri dish storage, and ensures high quality media uniformity. It can quickly and gently sterilize the medium and accurately monitor and control the time, temperature, pressure and other parameters in the sterilization process, so as to ensure that all sterilized products have the same high quality, its intuitive graphical interface and The programming function makes it easy for everyone to operate the instrument.

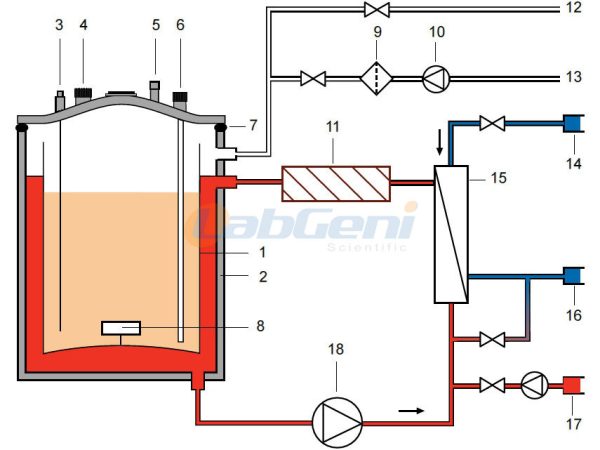

MEDIAPREP30 preparator can be quickly prepared for sterilization, placed in a sterilizer, and filled with water in a “water jacket system” (sleeve water between the sterilizer and the sterilizer cavity for efficient heat transfer), added to the medium Raw materials, ready to start the sterilization process. The medium can be suspended and dissolved directly in MEDIAPREP30 preparator. Strong magnetic stirring ensures uniformity of mixing in the inner chamber and prevents condensation. The medium can be pre-dissolved in WATER BATH mode prior to sterilization. At the same time, an intuitive graphical interface makes it easy to operate without specially trained personnel. Users can customize multiple sterilization procedures, such as sterilization temperature, time, and dispensing temperature.

Main function:

  • Medium sterilization
  • Highly safe operation
  • Rapid heating
  • Reliable sterilization
  • Rapid cooling
  • Simple dispensing
  • Sterilization data record

Key Components Origin

  • Siemens PLC (Germany)
  • Solenoid valves (Italy )
  • Stirrer motor (Spain or Japan)
  • Pressure sensor (Switzerland)
  • Stirrer bar (Japan)
  • Circulating pump (U.S.)

Technical parameters:





12L, cavity 17L

30L, cavity 43.7L

Cavity size



Bucket size


222mmX 622mm

Sterilization temperature

70-122 ° C

70-122 ° C

Packing temperature

25-80 ° C

25-80 ° C

Water bath temperature

30-80 ° C

30-80 ° C

Maximum working pressure



Design pressure



Cavity sterilized water

deionized pure water
can automatically enter water (pressure is not less than 1bar)
high and low water level alarm

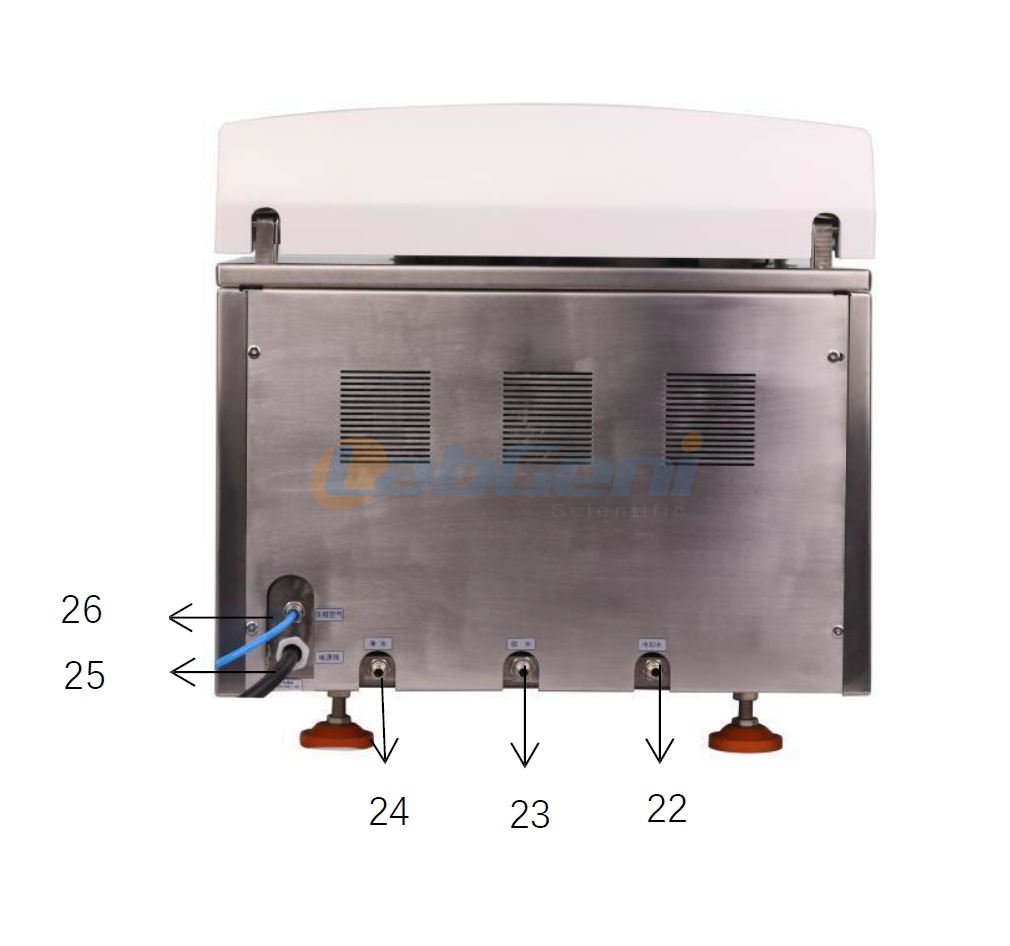

Cooling water interface

2 points inner wire diameter 12 pagoda joint

Circulating water

pressure is not less than 1bar tap water

Drainage interface

2 points inner wire diameter 12 pagoda joint

Temperature accuracy

0.1 ° C

0.1 ° C

Temperature offset

1 ° C

1 ° C

Time setting accuracy

1 minute

1 minute

Sterilization pot material



Dispense port

2 pcs, can adapt to a variety of sub-assembly requirements
one of which can also be used for aseptic addition of materials

Packing hose

inner diameter 6mm, thickness 2mm

inner diameter 6mm, thickness 2mm

Material addition port

diameter 32mm

diameter 32mm


powerful magnetic stirring
high speed 240rpm, low speed 120rpm adjustable

Heating power



Power requirements

220-240V, 50/60Hz, 16A

3×380-420V, 50/60Hz, 16A

Dimensions (mm)

480*555*635 (H*L*D)

965*555*655 (H*L*D)

Net weight



MEDIAPREP30 Auto Media Preparator 30 liters
