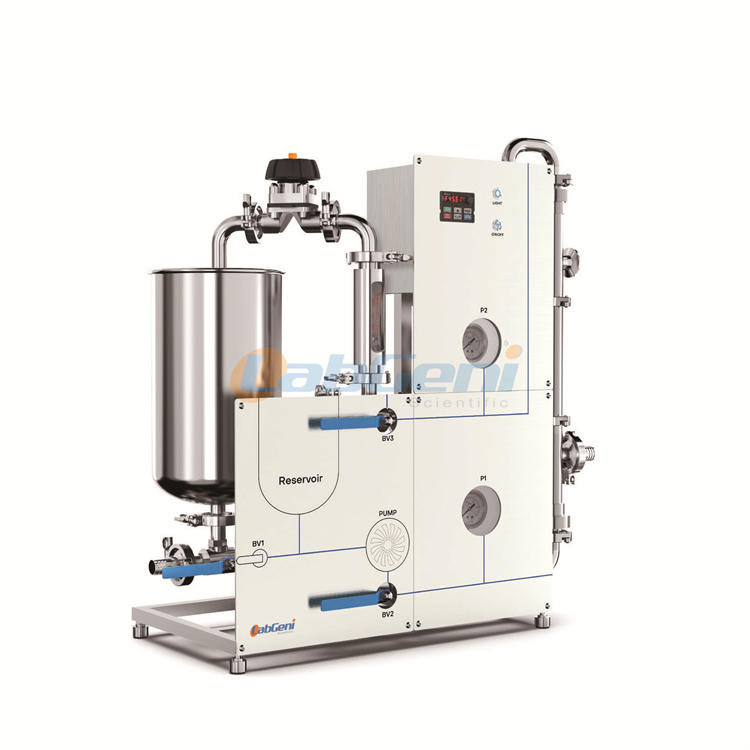

Mini Bench-top Ceramic Membrane Filtration Separation Equipment, Microfiltration, ultrafiltration & nanofiltration, 6-12 L/H

This equipment can be applied to microfiltration, ultrafiltration, nanofiltration, membrane selection according to the molecular weight of the substance, suitable for laboratory miniaturization research, and solves the large volume and processing capacity of traditional ceramic membrane separation equipment. Room use problems.

Process principle

Ceramic membrane filtration separation technology is a liquid separation process in the form of “cross-flow filtration”. The raw material liquid flows at a high speed in the membrane tube, and the clarified permeate containing the small molecular component is permeable to the membrane in the direction perpendicular to the pressure, and the turbid concentrate containing the macromolecular component is trapped by the membrane, thereby separating the fluid. Concentration, purification purposes.

Features

Can withstand high temperatures, suitable for filtration in high temperature processes, chemically stable
High mechanical strength, wide pH tolerance, acid resistance, alkali resistance, resistance to organic solvents and strong oxidants
Long service life, low overall equipment cost and high cost performance
High multiples, reducing water usage and reducing wastewater discharge
Sterilize the membrane module with high temperature steam, suitable for sterilization filtration

Classification

Main component schematic

ABOUT TAMI TUBULAR CERAMIC MEMBRANE

The tubular ceramic membrane imported from France is made of completely high purity materials. The geometric shape is diverse and meets the needs of users.

Tubular ceramic membranes are used in different separation ranges: microfiltration, ultrafiltration, and fine ultrafiltration.

Standard length specifications of the membrane:

Φ10mm:250/600/1201mm

Φ20mm:1178mm

Φ25mm:580/1178mm

Φ41mm:1020mm

Membrane molecular weight

Fine ultrafiltration	Ultrafiltration	Microfiltration
1kg/mol	15kg/mol	0.14um
3kg/mol	50kg/mol	0.20um
5kg/mol	150kg/mol	0.30um
8kg/mol	300kg/mol	0.45um
		0.80um
		1.4um

Membrane application field

Membrane select

System Overview
This equipment can be applied to microfiltration, ultrafiltration, nanofiltration, membrane selection according to the molecular weight of the substance, suitable for laboratory miniaturization research, and solves the large volume and processing capacity of traditional ceramic membrane separation equipment. Room use problems.

Application
Food and beverage Fermentation Pharmaceutical Natural product
Chemical industry Chemical synthesis Environmental protection and water treatment
New material

Features

	Desktop MINI-style integrated design Original design of the desktop MINI solves the traditional problem of large volume of ceramic membrane experimental equipment Easy to place on the desktop, easy to operate Highly integrated design, compact and compact
	Imported ceramic membrane element Imported original ceramic film, customized film for imported original Scope of application: microfiltration, ultrafiltration, nanofiltration Filled with LCM-MS high-quality membrane shell
	Membrane shell PH range: 0-14 Model: LCM-MS series high-quality membrane shell Material: AISI 316L Connection method: clamp quick release connection
	Material standard Material contact: Material AISI 304 Non-contact material part: Material AISI 304 Pipe: Sanitary seamless stainless steel pipe Valves: food grade sanitary ball valve, diaphragm valve
	New generation control system HSSP standard spray process chassis 7-inch capacitive high-resolution touch screen Temperature and pressure use medical grade sensors New generation LCM-Control control system, online monitoring data and control

Specifications

SN	ITEM NAME	SPECIFICATIONS
BASIC
1.	model	MCS-Mini
2.	Process capacity	6-12 L/H
3.	Minimum circulation volume	1L
4.	Anti-solvent	Resistant to organic solvents
5.	temperature range	0-121 ℃（Steam sterilization）
6.	PH range	0-14
7.	Working pressure	0-6 bar
8.	Maximum tolerance	10 bar
9.	Heat Exchanger	Tube and tube heat exchanger
10.	Material circulation tank	10 L
11.	Power unit	Imported brand centrifugal pump
12.	Valve, flow meter	Sanitary Quick Install Valve, Glass float flowmeter
13.	pipeline	Medical grade seamless 304 stainless steel tube
Membrane Element
1.	Membrane type	Imported ceramic membrane
2.	Filter range	Microfiltration, ultrafiltration, nanofiltration
3.	Membrane pore size	200D-1.2μm
4.	Membrane length	500mm
5.	Membrane load capacity	1pc
6.	Single membrane area	0.025㎡-0.11㎡
7.	health standard	FDA Standard Certification, 3-A
Membrane Shell
1.	Quantity	1 pc
2.	model	LCM-MS series high quality ceramic membrane shell
3.	Material	AISI 316L
Control System
1.	Electrical control cabinet	HSSP standard spray process chassis, beautiful and elegant, electrical components adopt Schneider Electric
2.	touch screen	7-inch capacitive high-resolution touch screen
3.	Thermometer sensor	Sanitary temperature sensor
4.	Pressure Sensor	Sanitary pressure sensor
5.	Software system	LCM-Control version 1.0 control system, equipped with temperature, pressure sensing, pump start, stop and frequency control data curve, recording and alarm functions.
Others
1.	voltage	AC220v、50hz
2.	rated power	AC220v/1.6kw
3.	Size (L * X * H)	565X395X715
4.	weight	35kg
Optional
1	Materials, heat exchangers, flow meters, valves, pumps, etc. can be specially customized according to different environments
2	Semi-automatic, fully automatic control system can be customized according to user needs
3	Remote control, mobile iPad control system customized according to user needs
