LFZ-BI series biochemical incubator is suitable for environmental protection, health, disease control, drug testing, farm animals, aquatic, universities and other research institutes and production laboratories; it is commonly instruments in water quality analysis and BOD measurement, bacterial, fungal, microbial culture, conservation, plant cultivation, breeding thermostats and etc.

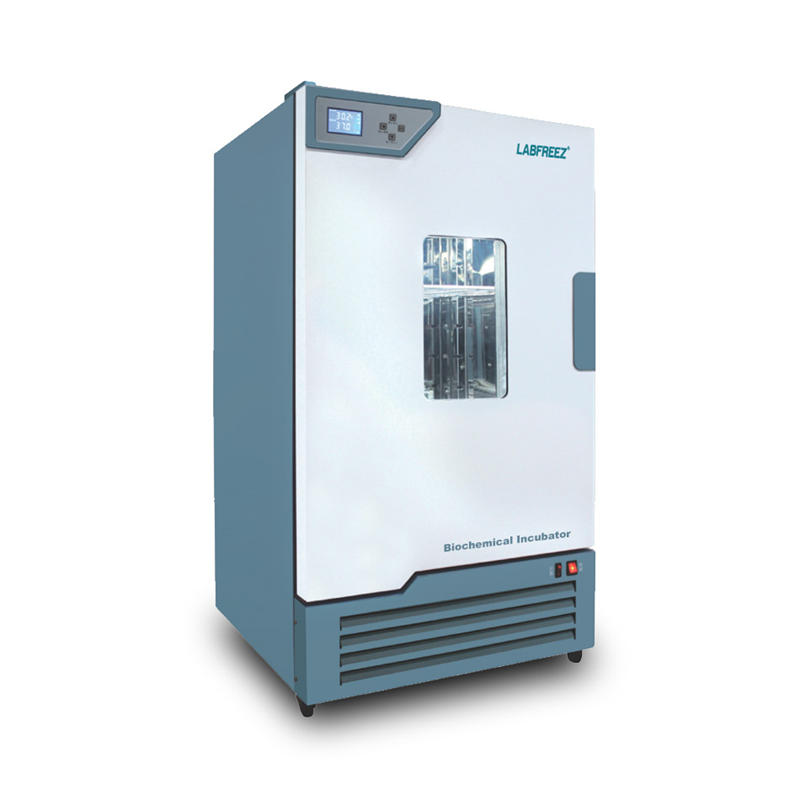

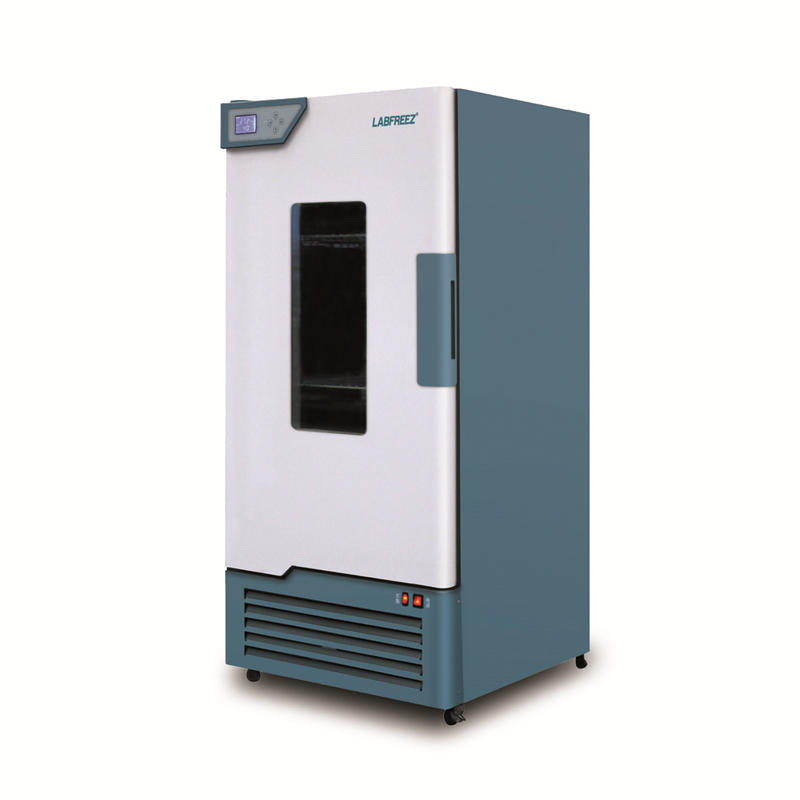

Biochemical Incubator/ BOD incubator, 0°C ~ 65°C, 80~450L
Application:
LFZ-BI series biochemical incubator is suitable for environmental protection, health, disease control, drug testing, farm animals, aquatic, universities and other research institutes and production laboratories; it is commonly instruments in water quality analysis and BOD measurement, bacterial, fungal, microbial culture, conservation, plant cultivation, breeding thermostats and etc.
Features:
1, CFC-free refrigeration environmental design
2, large-screen LCD
3, high-quality mirror stainless steel working chamber
4, External power socket can be connected to any electrical equipment
5, UV germicidal lamp
6, Unique centrifugal fan circulating air duct
7, high-quality magnetic tape sealed for door
8, fuzzy PID control with precise temperature control over temperature alarm, parameter memory and other functions
9, the left side of the box with 30 mm test hole
10, equipped with lights to facilitate the observation
.jpg "LFZ-BI series biochemical/bod incubator")
Specifications
| Model |
LFZ-BI-80 |
LFZ-BI-150 |
LFZ-BI-250 |
LFZ-BI-350 |
LFZ-BI-450 |
| Power |
220V50HZ |
||||
| Temp. range（°C） |
0-65 |
||||
| Temp. resolution（°C） |
0.1 |
||||
| Temp. fluctuation（°C） |
±0.3 |
||||
| Refrigerant |
R134a |
||||
| Heating power（kw） |
0.3 |
0.5 |
0.8 |
1.4 |
1.5 |
| Working chamber size(mm) |
500*350*500 |
500*400*750 |
500*500*1000 |
600*550*1000 |
600*710*1000 |
| Dimensions(mm) |
640*610*970 |
640*660*1200 |
640*755*1420 |
740*805*1470 |
740*965*1470 |
| Packing size(mm) |
770*710*1100 |
770*760*1320 |
770*860*1590 |
870*910*1590 |
870*1070*1590 |
| Shelf/load（kg） |
2 pcs/15 |
||||
| NW/GW（kg） |
68/83 |
80/110 |
100/137 |
125/165 |
140/185 |
Optional
| SN | Item name | Description |
|
1 |
Programmable controller | Can be preset 10 segments， blue color |
|
2 |
Mini printer | |
|
3 |
260，000 color programmable controller | Can be preset 30 segments |
|
4 |
RS485 interface | Remote control |
|
5 |
USB interface | Data export |
