DESCRIPTION

LABSPRAY MINI LOOP is specially designed for organic solvents and uses an inert gas medium formed by circulating nitrogen to replace the usual air medium for spray drying. In addition to recovering products, organic solvents can also be recovered.

This closed-loop spray system is specially designed for the low flash point or slightly toxic, flammable and explosive characteristics of organic solvents. It is an ideal closed-loop dryer for laboratory small-scale to pilot-scale tests. , The drying of toxic materials and oxidizable materials provides a new and reliable method.



APPLICATIONS

With inert loop system, solvent recovery device and oxygen monitor system, it is standard spray dryer suitable for both water-based liquid and organic solvent



FEATURES

  • Color LCD touch screen parameter display: air inlet temperature/air outlet temperature/peristaltic pump speed/air volume, etc.
  • Touch screen control: one-button start-up, setting spray process parameters, the process running animation can be clearly displayed on the touch screen;
  • Manual control: If you need to adjust the process parameters during the experiment, you can easily switch to the manual state, and the entire experiment process is dynamically displayed on the color touch screen (animation).
  • Spraying, drying and collecting parts are made of high-quality stainless steel, so that the drying process can be carried out in a pollution-free environment.
  • Atomization structure of two-fluid spray, whole machine is made of high-quality stainless steel, compact design, no auxiliary equipment is required.
  • Design of drying temperature control adopts real-time regulation PID constant temperature control technology, ensure accurate temperature control at ±0.5°C.
  • In order to keep the sample pure, it is equipped with an air inlet filter.
  • Feeding volume can be adjusted by the feeding peristaltic pump, and the minimum sample volume can reach 50ml.
  • Finished dry powder after drying has a relatively uniform particle size, and more than 95% of the dry powder is in the same particle size range.
  • Equipped with an oxygen content detection instrument, which can detect the oxygen content inside the equipment at any time to ensure safe operation.

COMPONENTS OF LABSPRAY MINI LOOP



TECHNIACL SPECIFICATIONS

MODEL LABSPRAY MINI LOOP
Inlet air temperature 30~300°C (±0.5°C)
Outlet air temperature 30~200°C (±0.5°C)
Control way Intelligent PLC control

Real time PID temperature control

Drying time 0.8 ~ 1 second
Feed rate 50 ~ 2000 ml/h
Fan motor mode Suction
Solvent recovery Part of solvent can be recovery
Atomization structure two-fluid
Atomization nozzle 0.5/0.7/0.75/1.0/1.5/2.0 mm can be chosen
Inert loop system N2 closed loop system
Bag filter Included
Material SS304
Overall size 775*585*1305 mm (W*D*H)
Net Weight 210 kg
Total Power 3.5 kw
Voltage/frequency AC 220V/50Hz

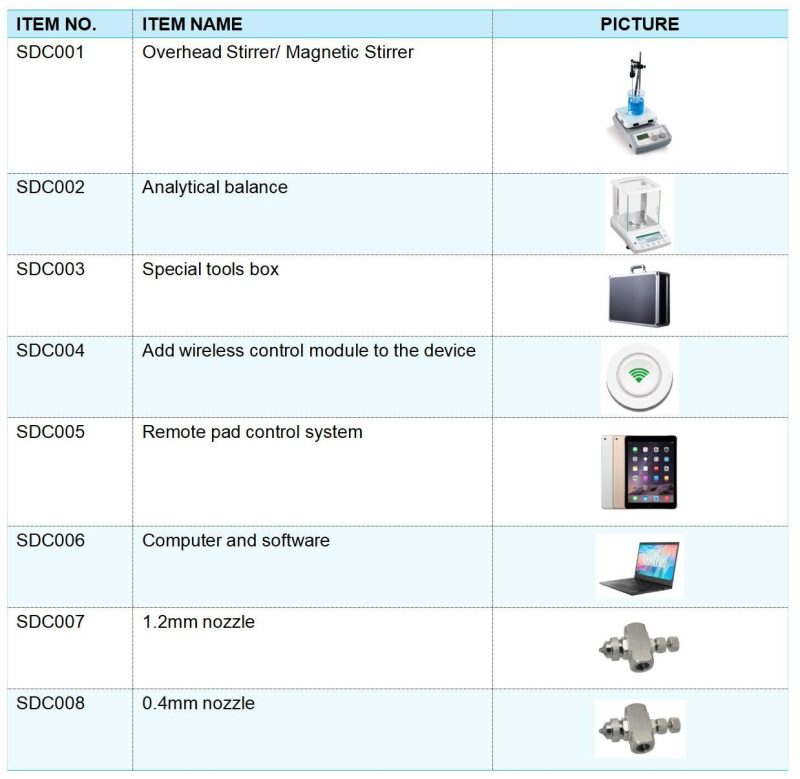

OPTIONAL LIST
