FD-CE Series Hot Sale Home Food Freeze Dryer Machine

• Vegetables: edible mushrooms, garlic slices, chives, spring onions, green beans, peas, cucumbers, sweet corn, carrot slices, spinach, asparagus, wild vegetables, etc.
• Aquatic products and meat: shellfish, shrimp, fish sticks, beef, pork, chicken, diced lamb, etc.
• Seasoning: garlic powder, ginger powder, spring onion powder, tomatoes, pepper.
• Instant beverages: coffee, tea, soup, soy milk, milk, etc.
• Convenience food: children’s food, snack food, camp food.
• Pharmaceutical field: Western tablets, reagents, powder injections, fresh Chinese herbal medicine, ginseng, antler wolfberry, Panax notoginseng, etc.
• Material field: freeze-drying of new graphene materials;
• Biological field: freeze-dried flowers, placenta, cells, etc.

Features of small food freeze dryer machine

• Humanized design of the whole machine, plug and play, beautiful appearance, compact structure and high cost performance.
• The integrated design of the tank and trap makes the sublimation channel shorter, which is conducive to the rapid sublimation of a large amount of water vapor.
• The original imported refrigeration compressor has large refrigeration capacity, high efficiency and energy saving, long service life and low noise.
• Using aerospace-grade high-transmittance plexiglass door, you can observe the whole process of sample freeze-drying changes in real time.
• The operation is simple and the degree of automation is high, and the whole process of freeze-drying can be completed with only one button.
• Preset standard freeze-drying process, no need to deeply understand the tedious freeze-drying principle and freeze-drying process, one-key process introduction.
• Intelligent fault diagnosis technology, which displays fault information in text form, which greatly facilitates equipment maintenance and fault repair.
• Safety lock function. Prevent misoperation from modifying the system status and process parameters, causing freeze-drying failure or instrument damage.
• The clapboard intelligent energy-saving temperature control technology has high temperature control accuracy, significant energy-saving effect, and the system is stable and reliable.
• One-key quick defrost technology, safe and efficient.

Specifications

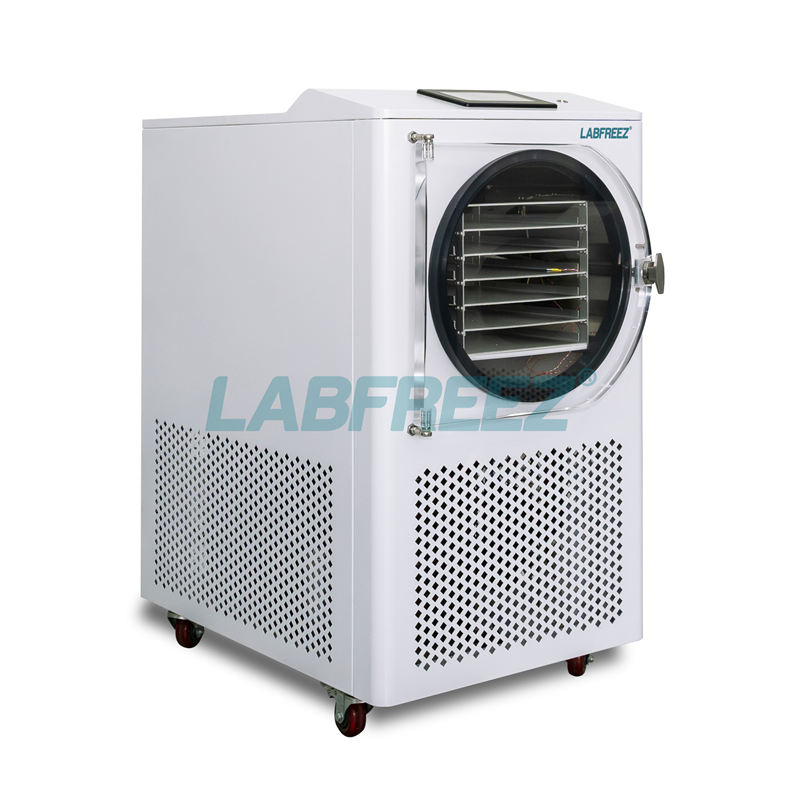

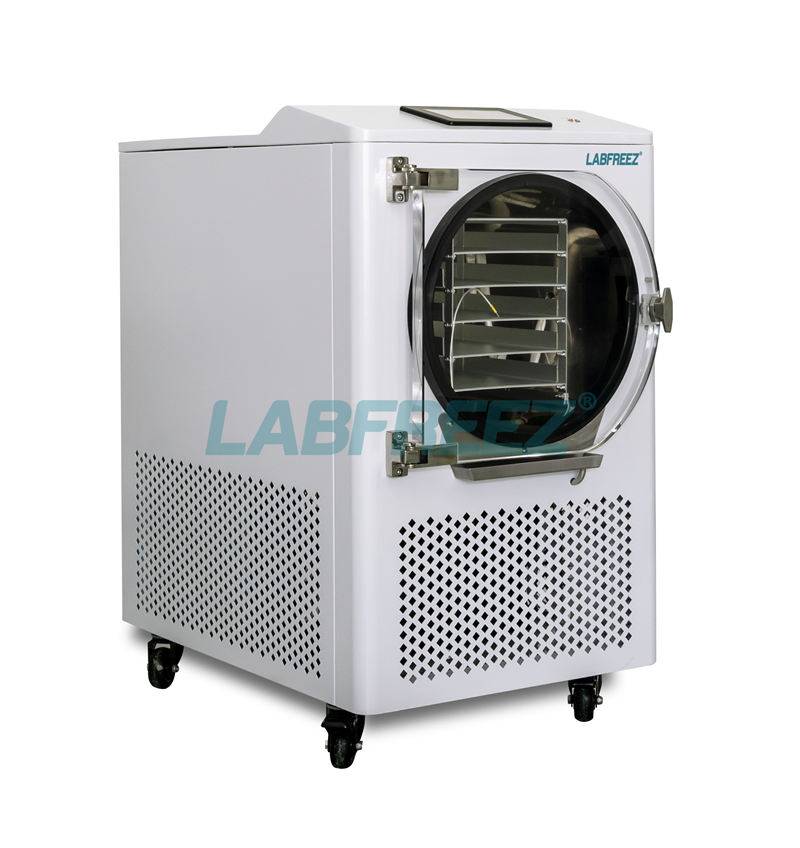

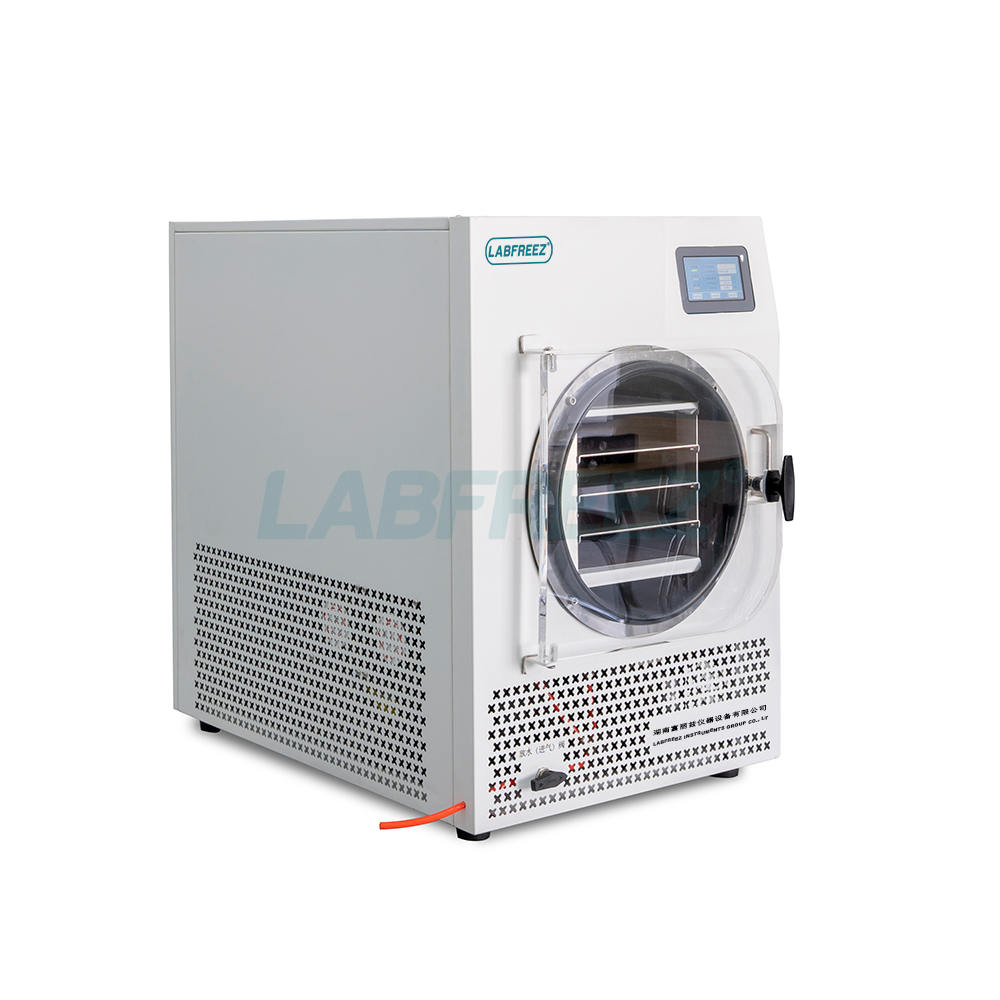

MODEL	FD-10F-CE	FD-30F-CE	FD-40F-CE	FD-60F-CE	FD-100F-CE
Shelf
Shelf area	0.1 m2	0.4 m2	0.43 m2	0.67 m2	1.0 m2
Shelf temperature range	-20 ~ +70°C(no load)	-20 ~ +70°C(no load)	-20 ~ +70°C(no load)	-20 ~ +70°C(no load)	-20 ~ +70°C(no load)
Shelf Flatness	≤ ±1.0mm / m	≤ ±1.0mm / m	≤ ±1.0mm / m	≤ ±1.0mm / m	≤ ±1.0mm / m
Shelf material	Aviation aluminum	Aviation aluminum	Aviation aluminum	Aviation aluminum	Aviation aluminum
Number of shelf	3+1	4+1	5+1	5+1	4+1
Temperature heating rate	-20°C to +20°C within 60m	-20°C to +20°C within 60m	-20°C to +20°C within 60m	-20°C to +20°C within 60m	-20°C to +20°C within 60m

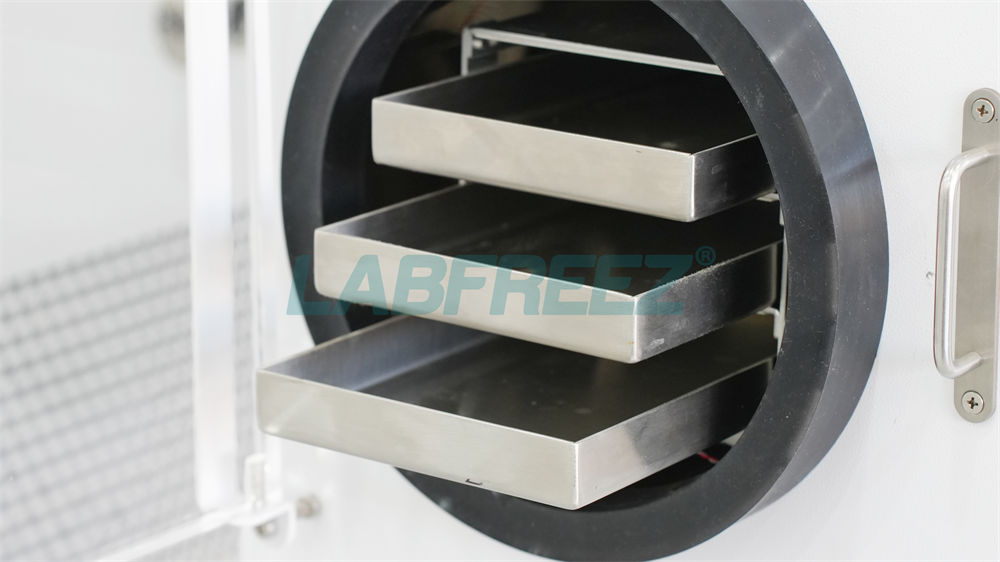

Number of trays	3 pcs	4 pcs	5 pcs	5 pcs	4 pcs
Material processing capacity	1-1.5L	4-5L	4-5L	6-7L	10L
Trays material	ANSI SS304	ANSI SS304	ANSI SS304	ANSI SS304	ANSI SS304
Condenser
Condenser temperature	≤-45°C (no load)	≤-45°C (no load)	≤-45°C (no load)	≤-45°C (no load)	≤-56°C (no load)
Condenser defrost	Electric defrost	Electric defrost	Electric defrost	Electric defrost	Electric defrost
Water catching capacity	≥2Kg/24h	≥4Kg/24h	≥6Kg/24h	≥10Kg/24h	≥10Kg/24h
Chamber
Chamber material	AISI 304 SS	AISI 304 SS	AISI 304 SS	AISI 304 SS	AISI 304 SS
Chamber door material	ACRYLIC	ACRYLIC	ACRYLIC	ACRYLIC	ACRYLIC
Roughness of inner wall	Ra ≤ 1.0 um	Ra ≤ 1.0 um	Ra ≤ 1.0 um	Ra ≤ 1.0 um	Ra ≤ 1.0 um
Coiling pipe material	AISI 304	AISI 304	AISI 304	AISI 304	AISI 304
refrigeration system
Compressor type	Full closure compressor	Full closure compressor	Full closure compressor	Full closure compressor	Full closure compressor
Compressor brand	International famous brand	International famous brand	International famous brand	International famous brand	International famous brand
Compressor number	1 set	1 set	1 set	1 set	1 set
Refrigerant	CFC-FREE	CFC-FREE	CFC-FREE	CFC-FREE	CFC-FREE
Shelf cooling way	direct	direct	direct	direct	direct
Condenser cooling way	direct	direct	direct	direct	direct
Vacuum System
Evacuation rate	2L/S	2L/S	2L/S	4L/S	4L/S
Ultimate vacuum	≤5 Pa (no load)	≤5 Pa (no load)	≤5 Pa (no load)	≤5 Pa (no load)	≤5 Pa (no load)
Pump type	Double stage rotary vane pump	Double stage rotary vane pump	Double stage rotary vane pump	Double stage rotary vane pump	Double stage rotary vane pump
Pump number	1 set	1 set	1 set	1 set	1 set
Chamber pumping rate (in dry condition)	Atmosphere to 10Pa ≤30m	Atmosphere to 10Pa ≤30m	Atmosphere to 10Pa ≤30m	Atmosphere to 10Pa ≤30m	Atmosphere to 10Pa ≤30m
System leaking rate	≤ 10 Pa·l / s	≤ 10 Pa·l / s	≤ 10 Pa·l / s	≤ 10 Pa·l / s	≤ 10 Pa·l / s
Heating System
Heating rate	0.3KW	0.5KW	0.6KW	1.2KW	2KW
Temperature sensor	PT-100 platinum resistance	PT-100 platinum resistance	PT-100 platinum resistance	PT-100 platinum resistance	PT-100 platinum resistance
CONTROL SYSTEM
Control style	Automatic & Manual	Automatic & Manual	Automatic & Manual	Automatic & Manual	Automatic & Manual
Screen	5’’ color touch	7’’ color touch	7’’ color touch	7’’ color touch	7’’ color touch
Main function	Manual + Auto Control Mode, Sensor calibration, Intelligent temperature control, Freeze drying termination reminding and other functions are available.
Machine power supply	AC220V, 50Hz	AC220V, 50Hz	AC220V, 50Hz	AC220V, 50Hz	AC220V, 50Hz
Machine power	1kW	2kW	2kW	2.5kw	3.5kw
Cooling method	Air cooled	Air cooled	Air cooled	Air cooled	Air cooled
